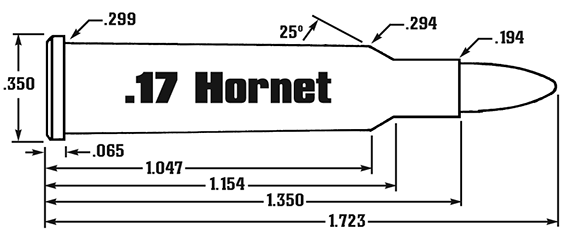

.17 Hornet (Western Powders Reloading Guide - Edition 5.0 - 2013)

.17 Hornet (Western Powders Reloading Guide - Edition 5.0 - 2013)
Warning! Notes: Barrel: 24"; twist: 1-10"; primer: WIN WSR; bullet diameter: 0.172"; case: HDY; max case length: 1.340"; trim length: 1.330". Never exceed the maximum load.
Cartridge History

.17 Hornet (Western Powders Reloading Guide – Edition 5.0 – 2013)

Western Powders’ take on the .17 Hornet emphasizes load efficiency, pressure control, and powder versatility. As this tiny high-velocity cartridge gained traction among varmint hunters, Western responded by offering carefully tuned data in their 5.0 edition guide, tailored to extract both performance and safety from limited case capacity.

What makes the Western Powders data noteworthy is its attention to pressure ceilings and barrel life. The guide outlines multiple powder options that generate sharp, clean burns without overworking the brass — a valuable trait for reloaders who cycle through hundreds of rounds in a single field session. Their LT-30 and LT-32 powders, in particular, offer stable velocities and superb consistency across temperature shifts.

The .17 Hornet’s appeal lies in its low recoil, high velocity, and flat trajectory, and Western’s approach plays into those strengths. This data set reflects real-world priorities: explosive varmint dispatching at long distances, all while maintaining manageable pressures and efficient powder charges. For shooters who prioritize longevity in both brass and barrel, Western’s reloading profile presents a balanced and smart approach to wringing out every ounce of potential from this specialized round.

Source: Wolfe Publishing

Be Alert: Publisher cannot be responsible for errors in published load data.
Wt. Bullet Powder Manufacturer Powder Charge Velocity (FPS)
20 Hornady V-Max Accurate AAC-1680 Subscribe 3183
Remarks: start load; COL (inches): 1.711
20 Hornady V-Max Accurate AAC-1680 Subscribe 3493
Remarks: max load; COL (inches): 1.711; 49,657 psi
20 Nosler Varmageddon Accurate AAC-1680 Subscribe 3203
Remarks: start load; COL (inches): 1.720
20 Nosler Varmageddon Accurate AAC-1680 Subscribe 3483
Remarks: max load; COL (inches): 1.720; 49,354 psi
20 Hornady V-Max Accurate AAC-5744 Subscribe 3097
Remarks: start load; COL (inches): 1.711
20 Hornady V-Max Accurate AAC-5744 Subscribe 3412
Remarks: max load; COL (inches): 1.711; 47,498 psi
20 Nosler Varmageddon Accurate AAC-5744 Subscribe 3106
Remarks: start load; COL (inches): 1.720
20 Nosler Varmageddon Accurate AAC-5744 Subscribe 3424
Remarks: max load; COL (inches): 1.720; 49,018 psi
20 Hornady V-Max Accurate AAC-2200 Subscribe 3203
Remarks: start load; COL (inches): 1.711
20 Hornady V-Max Accurate AAC-2200 Subscribe 3553
Remarks: max load; COL (inches): 1.711; 49,669 psi
20 Nosler Varmageddon Accurate AAC-2200 Subscribe 3297
Remarks: start load; COL (inches): 1.720
20 Nosler Varmageddon Accurate AAC-2200 Subscribe 3606
Remarks: max load; COL (inches): 1.720; 49,934 psi
25 Berger Varmint Accurate AAC-2200 Subscribe 2946
Remarks: start load; COL (inches): 1.720
25 Berger Varmint Accurate AAC-2200 Subscribe 3235
Remarks: max load; COL (inches): 1.720; 49,267 psi
25 Hornady V-Max Accurate AAC-2200 Subscribe 2930
Remarks: start load; COL (inches): 1.711
25 Hornady V-Max Accurate AAC-2200 Subscribe 3223
Remarks: max load; COL (inches): 1.711; 48,714 psi
25 Berger Varmint Accurate AAC-5744 Subscribe 2828
Remarks: start load; COL (inches): 1.720
25 Berger Varmint Accurate AAC-5744 Subscribe 3125
Remarks: max load; COL (inches): 1.720; 49,674 psi
25 Hornady V-Max Accurate AAC-5744 Subscribe 2786
Remarks: start load; COL (inches): 1.711
25 Hornady V-Max Accurate AAC-5744 Subscribe 3070
Remarks: max load; COL (inches): 1.711; 49,298 psi
25 Berger Varmint Accurate AAC-1680 Subscribe 2862
Remarks: start load; COL (inches): 1.720
25 Berger Varmint Accurate AAC-1680 Subscribe 3041
Remarks: max load; COL (inches): 1.720; 49,156 psi
25 Hornady V-Max Accurate AAC-1680 Subscribe 2724
Remarks: start load; COL (inches): 1.711
25 Hornady V-Max Accurate AAC-1680 Subscribe 2983
Remarks: max load; COL (inches): 1.711; 49,046 psi
