.17 Hornet (Using Hornady Bullets) |
![]() |

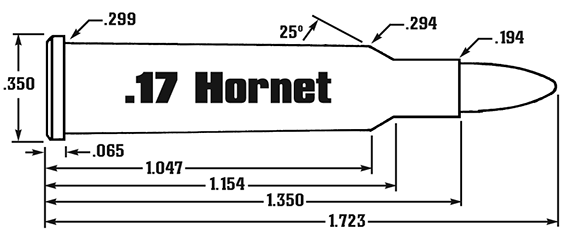

| Warning! Notes: This data was shot by Brian Pearce, Wolfe Publishing Company. Gun: Savage Model 25; barrel length: 24 inches; case: Hornady; primer: Winchester Small Rifle; bullet diameter: .172"; 20 & 25 GR Hornady V-Max COAL: 1.710", 25 GR Hornady HP COAL: 1.675"; maximum COAL: 1.720"; maximum case length: 1.350"; trim to length: 1.340".
To View The Special Lab Notes for this Table Click Here: .17 Hornet Lab Notes |
|
Cartridge History
.17 Hornet (Using Hornady Bullets): The Cartridge That Defined ItselfFew cartridges are as closely tied to a single manufacturer as the .17 Hornet is to Hornady. When Hornady introduced the cartridge in 2012, it was with a full lineup of factory ammunition and reloading components — including precision bullets engineered to get the most from this tiny, high-speed round. As a result, developing handloads using Hornady bullets isn’t just common — it’s often the standard by which other loads are measured. The 20-grain V-MAX remains the flagship projectile, known for delivering flat trajectories and explosive expansion on small game. Its polymer tip and sleek profile enhance aerodynamics, while its light weight helps push velocities well past 3,600 fps. For reloaders seeking even more versatility, Hornady’s 25-grain hollow point provides deeper penetration and more retained energy at distance, without sacrificing accuracy. What sets Hornady bullets apart in the .17 Hornet is their consistency. Bullet weights are tightly controlled, jackets are uniform, and performance is predictable — all critical traits for such a sensitive, small-capacity cartridge. Coupled with Hornady brass and careful charge tuning, these bullets help transform a factory round into a reloader’s playground. Whether for prairie dogs, foxes, or simply precision shooting on a calm morning, .17 Hornet loads built around Hornady bullets showcase the kind of synergy that happens when the cartridge designer also makes the projectile. Source: Wolfe Publishing |
| Be Alert: Publisher cannot be responsible for errors in published load data. |
| Wt. | Bullet | Powder Manufacturer | Powder | Charge | Velocity (FPS) | |
| 20 | Hornady V-Max | Alliant | 2400 | Subscribe | 3148 | |
| Remarks: | ||||||
| 20 | Hornady V-Max | Alliant | 2400 | Subscribe | 3189 | |
| Remarks: | ||||||
| 20 | Hornady V-Max | Alliant | 2400 | Subscribe | 3242 | |
| Remarks: | ||||||
| 20 | Hornady V-Max | Alliant | 2400 | Subscribe | 3283 | |
| Remarks: maximum load | ||||||
| 20 | Hornady V-Max | Hodgdon | H-110 | Subscribe | 3035 | |
| Remarks: | ||||||
| 20 | Hornady V-Max | Hodgdon | H-110 | Subscribe | 3118 | |
| Remarks: | ||||||
| 20 | Hornady V-Max | Hodgdon | H-110 | Subscribe | 3217 | |
| Remarks: | ||||||
| 20 | Hornady V-Max | Hodgdon | H-110 | Subscribe | 3316 | |
| Remarks: | ||||||
| 20 | Hornady V-Max | Hodgdon | H-110 | Subscribe | 3400 | |
| Remarks: maximum load | ||||||
| 20 | Hornady V-Max | Winchester | W-296 | Subscribe | 3101 | |
| Remarks: | ||||||
| 20 | Hornady V-Max | Winchester | W-296 | Subscribe | 3189 | |
| Remarks: | ||||||
| 20 | Hornady V-Max | Winchester | W-296 | Subscribe | 3298 | |
| Remarks: | ||||||
| 20 | Hornady V-Max | Winchester | W-296 | Subscribe | 3354 | |
| Remarks: | ||||||
| 20 | Hornady V-Max | Winchester | W-296 | Subscribe | 3431 | |
| Remarks: maximum load | ||||||
| 20 | Hornady V-Max | Vihtavuori | VV-N120 | Subscribe | 3116 | |
| Remarks: | ||||||
| 20 | Hornady V-Max | Vihtavuori | VV-N120 | Subscribe | 3180 | |
| Remarks: | ||||||
| 20 | Hornady V-Max | Vihtavuori | VV-N120 | Subscribe | 3258 | |
| Remarks: | ||||||
| 20 | Hornady V-Max | Vihtavuori | VV-N120 | Subscribe | 3336 | |
| Remarks: | ||||||
| 20 | Hornady V-Max | Vihtavuori | VV-N120 | Subscribe | 3400 | |
| Remarks: maximum load | ||||||
| 20 | Hornady V-Max | Accurate | AAC-1680 | Subscribe | 3209 | |
| Remarks: | ||||||
| 20 | Hornady V-Max | Accurate | AAC-1680 | Subscribe | 3303 | |
| Remarks: | ||||||
| 20 | Hornady V-Max | Accurate | AAC-1680 | Subscribe | 3402 | |
| Remarks: | ||||||
| 20 | Hornady V-Max | Accurate | AAC-1680 | Subscribe | 3506 | |
| Remarks: | ||||||
| 20 | Hornady V-Max | Accurate | AAC-1680 | Subscribe | 3610 | |
| Remarks: | ||||||
| 20 | Hornady V-Max | Accurate | AAC-1680 | Subscribe | 3709 | |
| Remarks: | ||||||
| 20 | Hornady V-Max | Accurate | AAC-1680 | Subscribe | 3807 | |
| Remarks: maximum load | ||||||
| 25 | Hornady HP or Hornady V-Max | IMR | IMR-4227 | Subscribe | 2831 | |
| Remarks: | ||||||
| 25 | Hornady HP or Hornady V-Max | IMR | IMR-4227 | Subscribe | 2927 | |
| Remarks: | ||||||
| 25 | Hornady HP or Hornady V-Max | IMR | IMR-4227 | Subscribe | 3022 | |
| Remarks: maximum load | ||||||
| 25 | Hornady HP or Hornady V-Max | Vihtavuori | VV-N120 | Subscribe | 2881 | |
| Remarks: | ||||||
| 25 | Hornady HP or Hornady V-Max | Vihtavuori | VV-N120 | Subscribe | 2965 | |
| Remarks: | ||||||
| 25 | Hornady HP or Hornady V-Max | Vihtavuori | VV-N120 | Subscribe | 3048 | |
| Remarks: maximum load | ||||||
| 25 | Hornady HP or Hornady V-Max | IMR | IMR-4198 | Subscribe | 2840 | |
| Remarks: | ||||||
| 25 | Hornady HP or Hornady V-Max | IMR | IMR-4198 | Subscribe | 2952 | |
| Remarks: | ||||||
| 25 | Hornady HP or Hornady V-Max | IMR | IMR-4198 | Subscribe | 3063 | |
| Remarks: maximum load | ||||||
| 25 | Hornady HP or Hornady V-Max | Accurate | AAC-1680 | Subscribe | 2891 | |
| Remarks: | ||||||
| 25 | Hornady HP or Hornady V-Max | Accurate | AAC-1680 | Subscribe | 3005 | |
| Remarks: | ||||||
| 25 | Hornady HP or Hornady V-Max | Accurate | AAC-1680 | Subscribe | 3155 | |
| Remarks: | ||||||
| 25 | Hornady HP or Hornady V-Max | Accurate | AAC-1680 | Subscribe | 3270 | |
| Remarks: maximum load | ||||||
| 25 | Hornady HP or Hornady V-Max | Hodgdon | H-4198 | Subscribe | 3025 | |
| Remarks: | ||||||
| 25 | Hornady HP or Hornady V-Max | Hodgdon | H-4198 | Subscribe | 3097 | |
| Remarks: | ||||||
| 25 | Hornady HP or Hornady V-Max | Hodgdon | H-4198 | Subscribe | 3190 | |
| Remarks: | ||||||
| 25 | Hornady HP or Hornady V-Max | Hodgdon | H-4198 | Subscribe | 3261 | |
| Remarks: maximum load | ||||||
| 25 | Hornady HP or Hornady V-Max | Vihtavuori | VV-N130 | Subscribe | 2862 | |
| Remarks: | ||||||
| 25 | Hornady HP or Hornady V-Max | Vihtavuori | VV-N130 | Subscribe | 2944 | |
| Remarks: | ||||||
| 25 | Hornady HP or Hornady V-Max | Vihtavuori | VV-N130 | Subscribe | 3025 | |
| Remarks: maximum load | ||||||
| 25 | Hornady HP or Hornady V-Max | Norma | N-200 | Subscribe | 2959 | |
| Remarks: | ||||||
| 25 | Hornady HP or Hornady V-Max | Norma | N-200 | Subscribe | 3038 | |
| Remarks: maximum load | ||||||




3.gif)
