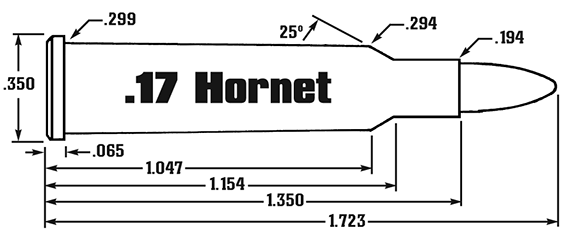

.17 Hornet (Hodgdon Data) |
![]() |
| Warning! Notes: Case: Hornady; twist: 1:9"; primer: Federal 205M; barrel length: 24"; trim length: 1.340"; bullet diam.: .172"; C.O.L.: 1.715". NEVER EXCEED MAXIMUM LOADS |
|
Cartridge History
.17 Hornet (Hodgdon Data): A Modern Take on a Classic ConceptThe .17 Hornet, introduced by Hornady in the early 2010s, brought a factory-backed twist to a classic wildcat idea. Based on the old .22 Hornet case — but sharply necked down and given a modern powder charge — the .17 Hornet delivers blistering speeds, low recoil, and exceptional accuracy for its size. Though inspired by P.O. Ackley’s original .17 Hornet wildcat, this SAAMI-standardized version is optimized for today’s rifles and propellants. Hodgdon’s load data has played a key role in shaping the .17 Hornet’s reputation as a consistent, high-performance varmint round. With powders like H4198 and Lil’Gun, reloaders can safely achieve velocities in the 3,600–3,800 fps range with 20-grain bullets — all while keeping pressures in check and barrel fouling to a minimum. Hodgdon’s testing has ensured that handloaders can tune this cartridge for everything from tiny ground squirrels to midsize predators, depending on bullet selection. The appeal of the .17 Hornet lies in its balance. It offers centerfire consistency, reloadability, and reach — all while maintaining a flat trajectory and extremely mild report. For rural pest control, quiet range days, or long-distance small game hunting, it’s hard to find a more satisfying performer in this caliber class. Thanks to Hodgdon’s contributions, the .17 Hornet has remained a handloader’s delight — forgiving, efficient, and always eager to surprise with how much performance can come from so little brass. Source: Wolfe Publishing |
| Be Alert: Publisher cannot be responsible for errors in published load data. |
| Wt. | Bullet | Powder Manufacturer | Powder | Charge | Velocity (FPS) | |
| 20 | Hornady V-Max | Hodgdon | H-4198 | Subscribe | 3226 | |
| Remarks: start load; 32,200 psi | ||||||
| 20 | Hornady V-Max | Hodgdon | H-4198 | Subscribe | 3463 | |
| Remarks: max load; compressed; 39,300 psi | ||||||
| 20 | Hornady V-Max | IMR | IMR-4227 | Subscribe | 3204 | |
| Remarks: start load; 40,700 psi | ||||||
| 20 | Hornady V-Max | IMR | IMR-4227 | Subscribe | 3356 | |
| Remarks: max load; 45,400 psi | ||||||
| 20 | Hornady V-Max | Winchester | W-296 | Subscribe | 3173 | |
| Remarks: start load; 40,900 psi | ||||||
| 20 | Hornady V-Max | Winchester | W-296 | Subscribe | 3301 | |
| Remarks: max load; 45,100 psi | ||||||
| 20 | Hornady V-Max | Hodgdon | H-110 | Subscribe | 3173 | |
| Remarks: start load; 40,900 psi | ||||||
| 20 | Hornady V-Max | Hodgdon | H-110 | Subscribe | 3301 | |
| Remarks: max load; 45,100 psi | ||||||
| 20 | Hornady V-Max | Hodgdon | Lil'Gun | Subscribe | 3538 | |
| Remarks: start load; 44,600 psi | ||||||
| 20 | Hornady V-Max | Hodgdon | Lil'Gun | Subscribe | 3629 | |
| Remarks: max load; 48,200 psi | ||||||
| 25 | Hornady V-Max | Hodgdon | H-335 | Subscribe | 2984 | |
| Remarks: start load; 39,200 psi | ||||||
| 25 | Hornady V-Max | Hodgdon | H-335 | Subscribe | 3145 | |
| Remarks: max load; compressed 45,900 psi | ||||||
| 25 | Hornady V-Max | Hodgdon | H-322 | Subscribe | 3091 | |
| Remarks: start load; 30,600 psi | ||||||
| 25 | Hornady V-Max | Hodgdon | H-322 | Subscribe | 3283 | |
| Remarks: max load; compressed; 36,200 psi | ||||||
| 25 | Hornady V-Max | Hodgdon | H-4198 | Subscribe | 2983 | |
| Remarks: start load; 34,900 psi | ||||||
| 25 | Hornady V-Max | Hodgdon | H-4198 | Subscribe | 3187 | |
| Remarks: max load; compressed; 42,500 psi | ||||||
| 25 | Hornady V-Max | IMR | IMR-4227 | Subscribe | 2856 | |
| Remarks: start load; 40,900 psi | ||||||
| 25 | Hornady V-Max | IMR | IMR-4227 | Subscribe | 3032 | |
| Remarks: max load; 45,700 psi | ||||||
| 25 | Hornady V-Max | Hodgdon | Lil'Gun | Subscribe | 3125 | |
| Remarks: start load; 45,000 psi | ||||||
| 25 | Hornady V-Max | Hodgdon | Lil'Gun | Subscribe | 3195 | |
| Remarks: max load; 48,000 psi | ||||||
| 30 | Berger HP | Hodgdon | H-335 | Subscribe | 2718 | |
| Remarks: start load; 36,700 psi | ||||||
| 30 | Berger HP | Hodgdon | H-335 | Subscribe | 2866 | |
| Remarks: max load; compressed; 44,000 psi | ||||||
| 30 | Berger HP | Hodgdon | H-322 | Subscribe | 2853 | |
| Remarks: start load; 40,500 psi | ||||||
| 30 | Berger HP | Hodgdon | H-322 | Subscribe | 3020 | |
| Remarks: max load; compressed; 48,000 psi | ||||||
| 30 | Berger HP | Hodgdon | H-4198 | Subscribe | 2815 | |
| Remarks: start load; 38,700 psi | ||||||
| 30 | Berger HP | Hodgdon | H-4198 | Subscribe | 3024 | |
| Remarks: max load; compressed; 47,300 psi | ||||||
