.17 Hornet Handloads

.17 Hornet Handloads

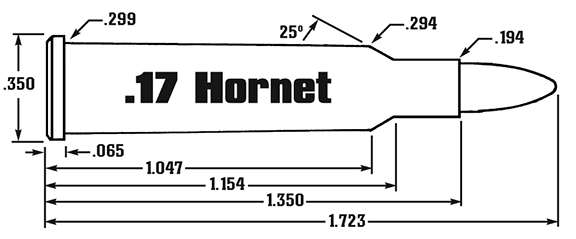

Warning! Notes: A Savage Model 25 Lightweight Varminter with a 24-inch barrel was used to test fire the handloads. Hornady cases and Winchester Small Rifle primers were used throughout. Bullet diameter: .172 inch; maximum overall loaded length: 1.720 inches; maximum case length: 1.350 inches and trim-to length: 1.340 inches.

Source: Rifle Issue #278 – January 2015

Cartridge History

.17 Hornet Handloads

Handloading for the .17 Hornet is an exercise in precision, patience, and reward. While the cartridge itself has earned a loyal following for its minimal recoil and flat-shooting nature, it’s within the handloading process that its true potential is unlocked. Shooters who handload the .17 Hornet often do so not only to save on cost, but also to fine-tune performance in ways factory ammunition simply can’t match.

Originally introduced as a modern take on the classic .22 Hornet necked down to .17 caliber, the .17 Hornet has found a home among varmint hunters and accuracy-focused reloaders. When loaded carefully, it delivers high velocities — typically in the 3,500 to 3,700 fps range — with bullet weights between 20 and 25 grains. These speeds, combined with light recoil and explosive terminal performance, make it a favorite for taking down ground squirrels, prairie dogs, and similar small game with precision.

For handloaders, powders such as Hodgdon’s H4198, Accurate 1680, and Lil’Gun are commonly chosen for their burn rates and consistency. Seating depth and powder charge weight are particularly sensitive in this cartridge, and even small changes can significantly affect pressure and accuracy. This makes the .17 Hornet a perfect candidate for experienced reloaders who enjoy dialing in tight groups through careful experimentation.

Many shooters note that brass life can vary with this cartridge — likely due to its thin case walls and relatively high operating pressures. Proper annealing and case preparation are key to getting the most from your brass. Likewise, using a quality primer like the Remington 7½ Benchrest primer helps ensure consistent ignition, especially in colder weather or when using ball powders.

The satisfaction of crafting a handload that groups tightly at 100 yards — from a cartridge barely larger than your pinky — is part of what keeps reloaders coming back to the .17 Hornet. It’s not just about punching paper or clearing a field of varmints. It’s about mastery of the small details, and the reward that comes from a cartridge perfectly tuned to your rifle.

Source: Rifle Issue #278 – January 2015

Be Alert: Publisher cannot be responsible for errors in published load data.
Wt. Bullet Powder Manufacturer Powder Charge Velocity (FPS)
20 Hornady V-Max Alliant 2400 Subscribe 3311
Remarks: overall loaded length (inches): 1.710
20 Hornady V-Max Hodgdon H-110 Subscribe 3431
Remarks: overall loaded length (inches): 1.710
20 Hornady V-Max Accurate AAC-1680 Subscribe 3807
Remarks: overall loaded length (inches): 1.710
25 Hornady V-Max IMR IMR-4227 Subscribe 3017
Remarks: overall loaded length (inches): 1.720
25 Hornady V-Max Accurate AAC-1680 Subscribe 3285
Remarks: overall loaded length (inches): 1.720
