The Ultimate Reloading Manual
load development

Lyman Case Prep Multi-Tool Product Review

Author: R.H. VanDenburg Jr. / Wolfe Publishing Co.
Date: May 18 2018

As all handloaders know, the most interesting of components – the cartridge case – requires a certain amount of care. For those who are attentive to case needs, a look around their reloading benches will usually reveal a number of tools or accessories for case preparation. Chances are good that each tool was purchased separately.

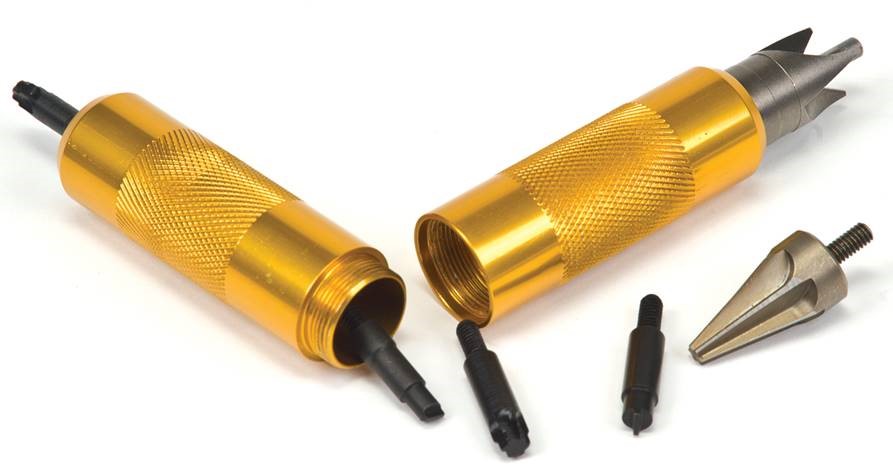

For some time I have used a Lyman Case Prep Multi-Tool, that incorporates a two-part anodized aluminum handle that holds inside and outside deburring tools, large and small primer pocket cleaners and large and small primer pocket reamers. A set of instructions are also included.

The handle assembly is about 5 inches long, 7/8 inch in diameter and of a copper-like color. Each end is about 2½ inches long when assembled. The male end has a threaded section of about ¼ inch; the female end is, of course, threaded to receive it. Each section is knurled for about 1½ inches of its length, and the outer end of each section is drilled and tapped to accept the included accessories, as well as any others with 8x32 threads.

The pocket cleaners are of the scraper type. The  primer pocket reamers are a somewhat hexagonal-shaped with six cutting surfaces designed to remove any vestiges of a military crimp and bevel the leading edge of the primer pocket. The outside deburring tool is also standard with a centering rod and three angled cutting surfaces to gently remove any burrs left from the case trimming process. The inside deburring tool, on the other hand, has its six cutting surfaces ground at a 22-degree angle rather than the more traditional 45 degrees. This milder angle is referred to as VLD (Very Low Drag) and is preferred for that type of bullet design. It works well for all bullets, and makes bullet entry into the case much smoother than with the standard design.

In use, I found the Case Prep Multi-Tool to be very functional. Once I had unscrewed the handle halves and removed the case prep accessories, I found it easier to simply use one half of the handle by itself rather than reassemble the two together. When using the two deburring tools, it was quicker and easier to use one, put it down and pick up the other rather than rotate the assembled handle with the two deburring tools.



You must be a subscriber to see the full article.
