The Ultimate Reloading Manual
load development

Cooper Model 52 .270 Winchester

Author: Mike Thomas / Wolfe Publishing Co.
Date: Jun 13 2014

Mike fired nearly 1,000 rounds from the bench in testing loads listed in the table. Much of the shooting
was done with temperatures approaching 100-degrees Fahrenheit and accompanied by light breezes.

Most hunters are familiar with the Cooper Firearms of Montana accuracy guarantee on its centerfire rifles: .5-inch, three-shot groups at 100 yards with “hand-loaded match grade ammo.” No doubt such a guarantee helped establish and maintain a reputation for better-than-average accuracy. Just as importantly for the manufacturer, it sells rifles. The test target supplied with the Cooper Model 52 Jackson Hunter .270 Winchester depicted a tiny three-shot group fired with a handload made up of an unspecified charge of IMR-4064 and Sierra 135-grain MatchKings.

I attempted to measure the test target group using a Brown & Sharpe dial caliper. Diligently measuring the group three times, I came up with a different figure in each instance. Admittedly, they were close. Groups measured to three decimal places are frequently listed in articles, so I must assume those measuring them take several readings, then average (subtracting bullet diameter) or employ a “group” measuring device that is used with a dial caliper. Having no such device and returning to the realization that the Cooper was in fact a hunting rifle, the dial caliper was carefully put in its case and replaced with a well-worn 6-inch wooden ruler. The test target group measured exactly .375 inch, outside to outside. Subtract .277 inch from that figure . . . indeed, a very small three-shot group.

The Cooper 52 .270 Winchester, while a heavier
rifle than many, balances well and is not particularly
difficult to shoot from an offhand field position,
should such a shot become necessary.

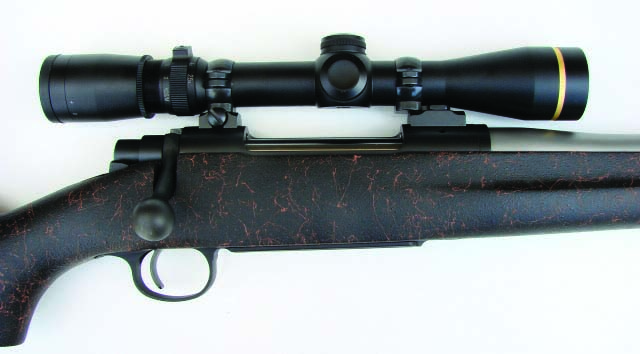

The Model 52 Jackson Hunter is a bolt action with a three-round detachable magazine and a floated 24-inch, medium-weight stainless steel barrel. The synthetic stock is a Bell & Carlson with an aluminum bedding block. Fitted with a usable recoil pad, length of pull is 13.75 inches. The trigger is about perfect for a hunting rifle, breaking cleanly at a precise 3 pounds. Some might describe the Cooper 52 as a big or even “clunky” rifle. Advertised bare weight is 7 pounds, 12 ounces; mine scales in at 8 pounds, 12 ounces with a Leupold 2.5-8x 36mm VX-3, unloaded and minus a sling. The 2.5-8x36 is a rather light scope; one of the higher magnification variables that is so popular today would easily push total weight to over 9 pounds. Burdensome? Only the user can make that determination, but there is an advantage to a heavier rifle. Many hunters agree that such a rifle is more tolerant of user shortcomings, making it easier to shoot well, whether from a bench or in the field. Those who practice far less than they should are always ahead using a heavier rifle.

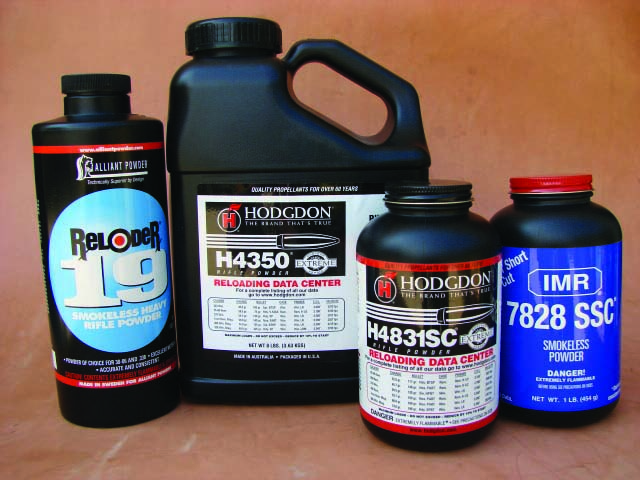

A fair amount of time was spent handloading and shooting the rifle from a benchrest. Firing close to 1,000 rounds, 15 bullets and several powders were used in developing loads shown in the table. Brass was Remington and primers were Federal 210 Match.

The 52 has proven to be quite accurate, noticeably more so than many production guns. Most of the load testing was performed during an unusually hot summer with temperatures approaching 100 degrees by noon, usually accompanied by a breeze. One three-shot group would heat the barrel considerably, resulting in far more time spent waiting for the barrel to cool than actually shooting.

Handloading for the Cooper was straightforward, even unremarkable for the most part. Maximum loads taken from current handloading manuals were, in some instances, a bit hot for the Cooper, but the same could apply to many other rifles. Bullet seating depth was experimented with, and virtually all bullets were seated deeper (though not by much) than had been necessary with other .270 Winchester rifles I have worked with. Experience with the others indicated that many .277- inch bullets could be seated out to full magazine length without the bullets being engraved by the lands when chambered.

Along the same lines, once a starting point was reached, bullet seating depth was not very critical with any of the bullets used, though most loads in the table have bullets seated several thousandths off the lands. I’ve found Barnes bullets normally require more experimentation in this area than most other bullets. Pleasantly, such was not the case this time. While the 130-grain TSX BT (boat-tail) was more accurate than the 140-grain TSX BT, changing the seating depths on either made no discernible difference in accuracy.

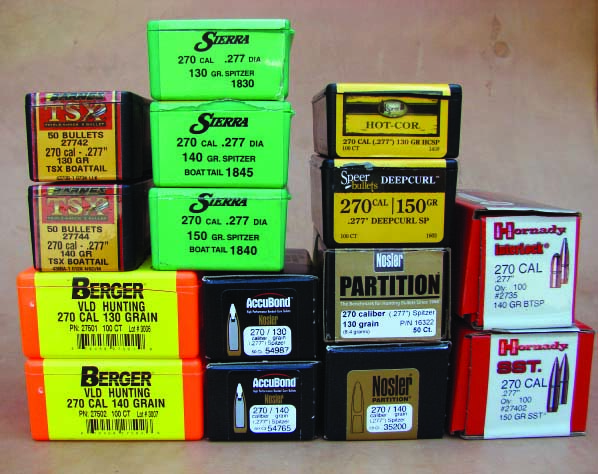

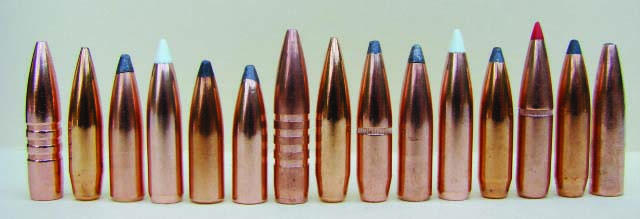

Fifteen bullets were used for developing and
evaluating .270 Winchester loads. All were in the 130-
to 150-grain weight range, the most popular for this

With the Cooper, I relied on velocity comparisons (my figures versus those from handloading manuals) as the best, though admittedly rough, indicator of higher-than-normal chamber pressure. Speaking of less-than-foolproof processes, an experienced handloader who is very familiar with a particular rifle can sometimes get a basic feel for safe pressure through “reading” primers. With the Cooper .270, fired Federal 210 Match primers in starting loads usually had the same flattened appearance as those from much heavier loads.

The same goes for bolt lift on fired cases. As with many rifles using custom or semicustom actions, they are often stiff, supposedly because parts tolerances are smaller than in mass-produced guns. In the Model 52, bolt lift on fired cases required virtually the same amount of effort, regardless of the powder charge. That’s not to say a danger point could not be reached where bolt lift would be difficult or impossible.

Most current loading manuals show .270 Winchester data fired in barrels ranging in length from 22 to 26 inches, with most at 24 inches. Having previously worked with a 26-inch barreled Ruger No. 1 and a Remington Model 700 with a 22-inch barrel, I was very aware of the differences in attainable muzzle velocities between the lengths. These differences appear to be more pronounced with the .270 than with many other cartridges. Sure, variables can enter in here, like “slow” barrels and “fast” ones, but generally, these are exceptions to the rule. The .270 can almost achieve its velocity potential in a 22-inch barrel. A 24-inch barrel makes it easy.
