Partial Sizing of Brass

Author: John Barsness / Wolfe Publishing Co.
Date: Jul 26 2005

Most handloaders just screw the sizing die into the press until it bottoms out against the shellholder, then tighten everything down. This works pretty well most of the time, the reason most loading- die instruction manuals tell you to do it that way.

But occasionally it helps to modify this procedure a little. For instance, I almost never use plain neck-sizing dies anymore. Most have too much slop in the die body to keep the case straight, thus the neck can end up pointing in a different direction than the body of the case, which does no good for accuracy.

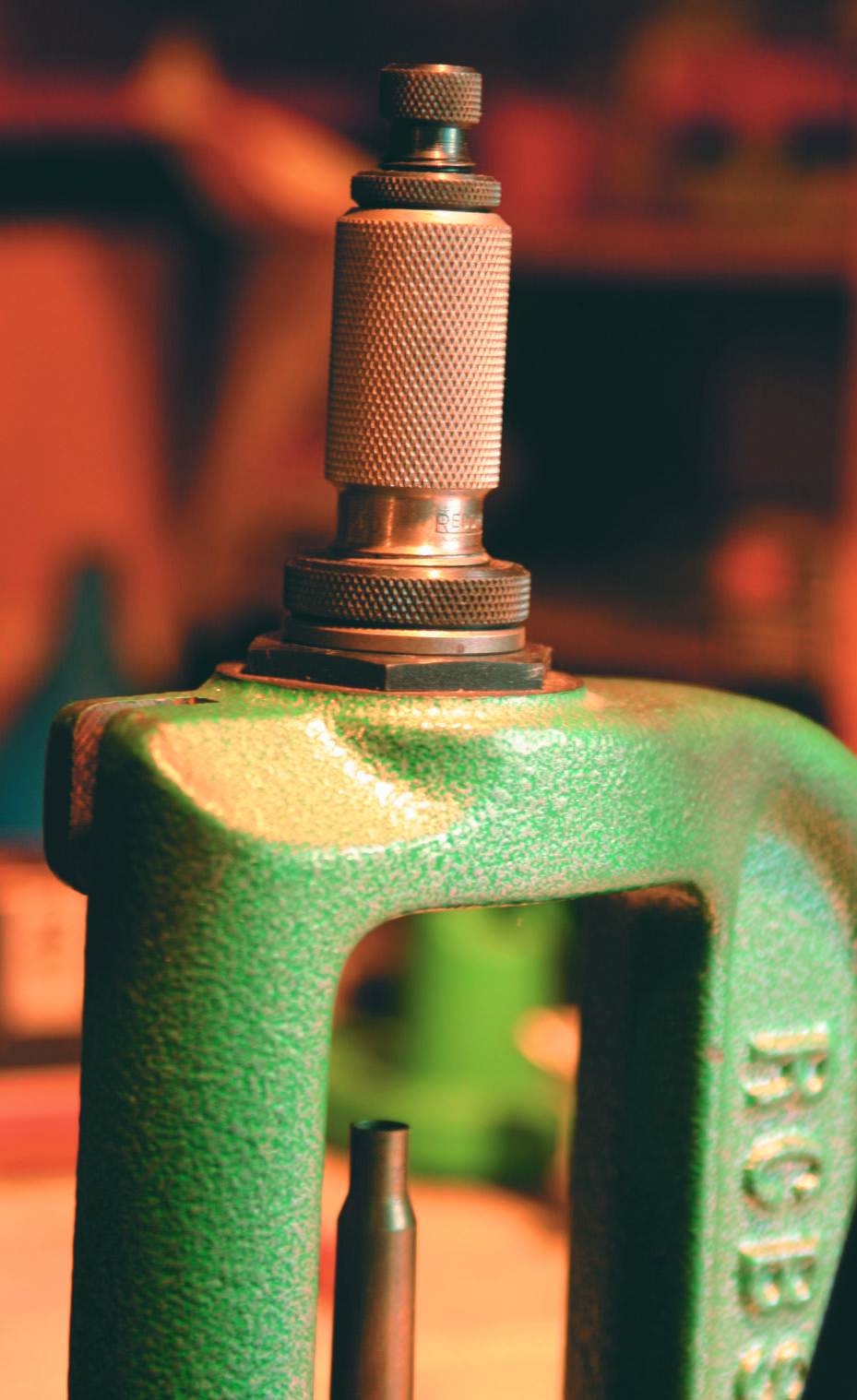

 If I’m looking for the kind of accuracy neck-sizing supposedly provides, instead I’ll use a fulllength die to partially size the case. This is easy with a 7⁄8-inch washer that’s about 1⁄16 of an inch thick. Use this washer to “raise” an already-adjusted full-length die, and it will size all but 1⁄16-inch of the neck (plenty for most rounds), while the body of the die keeps the brass pretty well aligned.

This is also the way some more sophisticated neck-sizing dies work, such a Redding’s “S” dies. The body of the brass is kept very well aligned, while the neck is sized down just enough with an interchangeable bushing. Lee’s Collet dies work on a similar principle, but with a 4-piece collet that compresses the neck around a mandrel.

Often straight-wall brass, such as revolver and most black powder rifle cases, can also be partially sized. I do this quite often with cartridges as varied as the .38-55, .405 WCF, .45 “Long” Colt and .45-70. Sizing only as much of the case as will be holding the bullet, leaves the body of the case closer to chamber dimensions, thus centering the cartridge more closely in the chamber. Here the technique is to unscrew the die to the appropriate height, without using washers or indeed tightening the die down in any way. The “floating die” tends to center the case.
